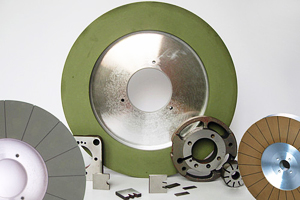

CBN & Diamond wheels show its prominent capacity when it use for mass production as a grinding wheel which is capable to work both side at once. The primary application is mass production of parts requiring a high degree of straightness, flatness and perpendicularity. They are used for mirror polishing the work piece surface of compressor cylinders, the inner and outer raced surfaces of bearings, transmission gears, washers, tappet shims, vane pump vanes and rotors, precision springs, etc.
CBN/DIA DISC G/Wheel's Specs and Condition for Use
| Work Piece | Condition | Hardness | Spec |
| Compressor Roller | FC25 | HB170-200 | CBNC 325 N 75 B |
| Compressor Cylinder | FC20 | CBNC 140 N 75 B | |
| Gear Oil Pump | SCM415 | HRC 60 | CBNC 325 V 75 B |
| Inner Bearing | SUJ2 | HRC 60-61 | CBNC 400 N 75 B |
| Snap Ring | SK5 | HRC 60 | CBNC 140 N 75 B |
| Compressor Vane | HSS(SKD-9) | HRC 63-64 | CBNC 400 N 75 B |
