I.D Grinding for Bearing Parts

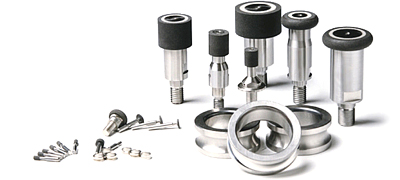

Vitrified bond CBN wheels are used for internal grinding of bearing inner and outer race.

Compared to general-purpose grinding wheels, the CBN Diamond wheel achieves higher machining precision and dramatically extends the interval between dressing.

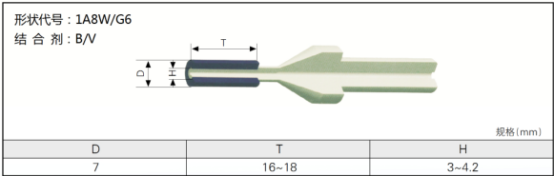

Specifications and usage conditions of CBN/diamond grinding wheels for bearing inner hole/end face grinding applications

Work Piece	Condition	Hardness	Spec
Inner Bearing	SUJ2	HRC 60-62	CBN 120 L 200 V
Inner Ring of Ball Bearing	100Cr6(1.3505)	HRC 61-64	CBN 140 L 200 V
Inner Ring of Bearing	100Cr6	HRC 62	CBN 120 L 200 V
