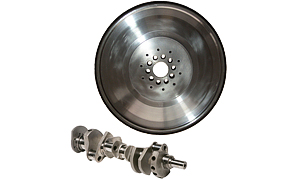

Crankshaft Grinding

For crankshafts, the market requires an operational performance of up to 1,000.000km. To achieve the desired endurance and strength, high surface quality and precision ground journal geometries are necessary. Thus, vitrified bonded CBN grinding wheels are widely used in the grinding of crankshaft pin and journals.

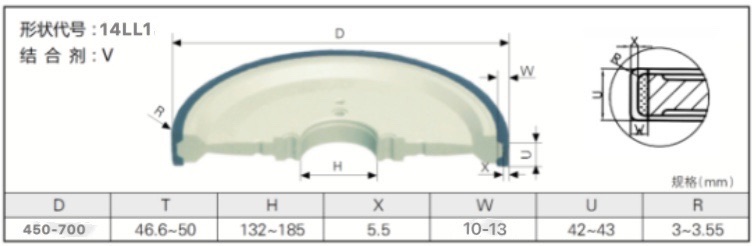

CBN CRANKSHAFT G/Wheel's Specs and Condition for Use

Work Piece	Condition	Hardness	Spec
Crankshaft Pins	GGG60	HRC 60	CBN 140 M 180 V
	SCM440H	HV269-328	CBN 120 M 180 V
	FCD70C	HV269-328	CBN 170 M 180 V
Crankshaft Journal	FCD70C	HV269-328	CBN 140 M 180 V
	SM440H		CBN 140 M 180 V
			CBN 120 M 200 V
			CBN 120 M 180 V
			CBN 100 M 180 V
	FCD70C	HV269-255	CBN 120 M 180 V
